LOG GARAGE KIT – 264 sq ft Cabin Home – $122,900 – Jersey City, NJ

Premium quality LOG GARAGE KIT LH_BG-117 SHELL PACKAGE (MADE OF ENGINEERED WOOD / GLT) sold exclusively by ECOHOUSEMART and custom made to order. It is made of today's most advanced wood material - GLT, species - white Spruce.

LOG HOUSE IS AN EXCELLENT CHOICE FROM THE HEALTHY LIVING POINT OF VIEW

WOOD PROMOTES PHYSICAL HEALTH

• optimal micro-climate creates healthy indoor air
• maximum thermal comfort
• antibacterial and hypoallergenic properties
• good acoustical properties

WOOD PROMOTES PSYCHOLOGICAL HEATH

• reduces stress by lowering blood pressure and heart rate
• creates restorative environment by nourishing all senses
• advances daily recovery
• improves quality of sleep
• creates warm, comfortable, relaxing and inviting atmosphere

WOOD IS ECOLOGICAL

• environmentally friendly 100 % renewable material
• energy efficient carbon sink with small carbon footprint
• sustainable forestry
• waste-free production
• strong, durable and long-lasting

MODEL: LH_BG-117 THIS GARAGE KIT IS NOT BUILT YET, AND WILL BE CUSTOM ORDERED ACCORDING TO YOUR REQUIREMENTS.

ECOHOUSEMART offers garages to match your log home. This Car garage offers a 24' x 30,5’ foot print with a second floor studio and balcony, a total of 1 264 square feet of space.

Logs of garage kit supplied are unpainted. Interior and exterior may be painted in color of your choice.

Modifications to existing floor plan can be made upon your request before purchasing.

PRODUCT OVERVIEW LH_BG-117 SHELL PACKAGE KIT:

• Main floor area - 672 sq. ft
• Second floor area - 592 sq. ft plus balcony
• Total floor area: 1 264 sq. ft

ECOHOUSEMART LH_BG-117 SHELL PACKAGE KIT INCLUDES THE FOLLOWING SYSTEM MATERIALS ONLY:

1. Wall set

• Sill plate board - 1,6” х 7,9”
• Strapping beam (with pile-screw foundation)

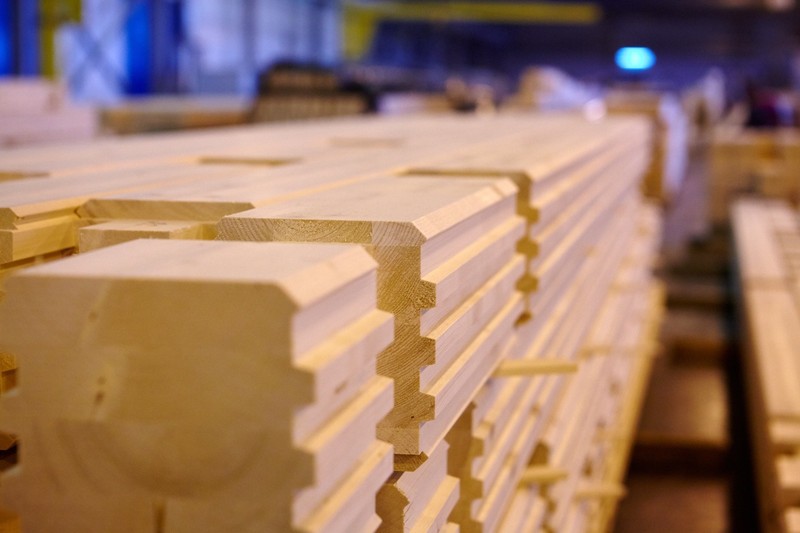

• Log wall system: White Spruce, interlocking profiled Logs with cups according to the house project, (Log W - 7 7/8"; Log H - 7 3/32"; U-factor = 0,585), cutting of material according to the project design, with the cutting of the end grooves, with protective finishing of the ends, ready to paint or stain. Stable engineered wood – GLT. Sanitized and kiln-dried, pre-cut corner joinery system, pre-cut spline notches, pre-cut window and door openings (*minor trimming and odd-shaped openings may need to be cut on-site). Log wall erection diagrams included. Log bundles are well factory wrapped from six sides.
• An intertwined seal for corner joints
• Structural posts - 8” х 8”, GLT
• Key for installing windows and doors - dry planed block 1,2" x 1,6"
• Material for extension jambs for installation of windows and doors, engineered wood 1,6" x 7,9"
• A set of hardware to assemble the wall set

2. Elements of floors

• Floor joists - planed wood, GLT
• Subfloor - sawn board 0,6"
• Stopper bar - sawn block 1,7" x 1,2"
• Framing lumber for exterior decks (if required by the project)
• A set of hardware to assemble the floor structure

3. Roof elements

• Roof battens - sawn board 1"
• Ventilation battens - sawn bar 1,7" x 2"
• Roof truss system (GLT)
• Inner solid roof sheathing - sawn board 0,6"
• Inner ventilation battens - sawn bar 1" x 2"
• A set of hardware to assemble the roof structure

4. Exterior finishing materials

• Eaves soffit - planed board 0,8" x 4,7”
• Fascia - planed board 0,8" x 4,7”

5. Shop drawings and other documentation

• Preliminary architectural drawings (NOT STAMPED).
• Shop structural drawings (NOT STAMPED). If required by local building authorities, review by a state-licensed professional is to be done additional cost.
• Easy to Read Assembly Manual.

OFFERED SEPARATELY:

* Drilling holes for concealed wiring

* Drilling holes for fastening elements such as studs and pegs

* Antiseptic and moisture-proof treatment of the components of the house-kits

 *It is possible to modify the package contents or use different size logs, available upon request. Subject to price adjustment.

**Modifications to interior layout are possible.

WE DO NOT SUPPLY ANY OTHER MATERIALS WITH THE ADVERTISED KIT IN THIS OFFER!

A distinctive feature of the proposed Log structure is factory readiness. Drilling the necessary technological holes is required at the time of installation. All parts of the wall set are made exactly according to the project using advanced CNC woodworking machinery and delivered completely ready for assembly. This allows to save time and money: you get a technologically advanced solution and fairly simple process of assembly. Construction is easy and fast. The kit can be erected by a small crew. Lifting equipment might be required.

IF THIS LISTING IS NOT EXACTLY WHAT YOU REQUIRE, PLEASE CONTACT US FOR A PERSONAL EBAY LISTING FOR YOUR EXACT REQUIREMENTS!

WINDOWS PACKAGE IS AVAILABLE AT ADDITIONAL COST. PLEASE CONTACT US FOR MORE DETAILS.

11 REASONS TO CHOOSE A HOUSE FROM ECOHOUSEMART:

1. HEALTH-FRIENDLY - Wood is a natural and environmentally friendly product that has positive effects on the human body, unlike other synthetic construction materials.

2. ENERGY EFFICIENCY - Our timber has high heat-insulating characteristics. Wooden walls accumulate warm air and evenly allocate it indoors, keeping the optimum temperature and humidity level. It is possible to heat a log house fairly quickly in the winter, and it will never be too hot during the summer. Therefore log houses are ideal both for permanent residence and for the weekend or holiday stay.

3. DURABILITY of GLT beams is higher than that of traditional wood.

4. ECO-FRIENDLY - Wood is a completely renewable natural resource.

5. NO SHRINKAGE - Our log house structure requires no time for shrinkage (average shrinkage is about 1%). This allows beginning finishing work right after the installation of supporting construction, as well as to carry out construction work year-round.

6. QUICK ERECTION - log house installation terms are less than the terms of houses constructed by the other technologies.

7. NO FINISHING REQUIRED - ECOHOUSEMART logs’ high esthetic characteristics do not require additional finishing materials. Our timber is a finished facade material and is universal in a house interior: you can keep the natural wood texture or paint walls any color.

8. ENDLESS DESIGN OPPORTUNITIES - Logs of the house can be of any length up to 38 ft. This allows for the design of large open spaces with increased complexity and configurations.

9. FIRE RESISTANCE - Surprising, but GLT logs fire resistance is 10 times higher than fire resistance of other wooden housing construction technologies and even metal.

10. BREATHABILITY - Our logs have all the natural qualities of wood including natural air exchange and vapor permeability. And that is the reason we can tell our houses "breathe". This ability of wood allows passing outside any harmful gasses that may become present indoors.

11. EARTHQUAKE-PROOF - Natural flexibility of wood provides for the incredible seismic stability of our houses.

NOTES:

• THIS LOG HOUSE KIT IS MADE OF HIGH-QUALITY NORTHERN WHITE SPRUCE (GRADE A, B), EASY PROFESSIONAL ASSEMBLY.
• YOU ARE BUYING ONLY THE PREFABRICATED LOG KIT. PLEASE READ ABOVE WHAT IS INCLUDED IN THE KIT. NO LABOR OR ANY OTHER MATERIALS ARE INCLUDED!
• THIS KIT DOES NOT INCLUDE WINDOWS, DOORS, PLUMBING, ELECTRICAL, FIXTURES SUCH AS TOILETS SINKS OR CABINETS.
• CONCRETE, ERECTION, INTERIOR FINISHING, ROOF INSULATION AND COVERING, STAIRWAY, PLUMBING, HVAC, ELECTRICAL ARE TO BE PAID BY BUYER SEPARATELY TO LOCAL SUPPLIERS
• ALL PERMITS AND RELATED FEES ARE PURCHASER’S RESPONSIBILITY.
• THE BUYER IS RESPONSIBLE TO MEET THE BUILDING PERMITS AND REQUIREMENTS IN THEIR STATE/COUNTY. SO PLEASE CHECK AT YOUR COUNTY BUILDING DEPARTMENT OFFICE TO FIND OUT WHAT IS REQUIRED.
• CUSTOMERS AGREE TO HOLD ECOHOUSEMART AND ANY AUTHORIZED DEALERS FREE OF ANY LIABILITY FOR IMPROPER INSTALLATION, MAINTENANCE, AND REPAIR OF ANY ECOHOUSEMART PRODUCTS.
• WE WILL BE GLAD TO GIVE YOU A FREE PRICE QUOTE ON YOUR CUSTOM HOUSE INQUIRY.
• MANUFACTURING IS CUSTOM AND ORDERS TAKE GENERALLY UP TO 150 DAYS TO RECEIVE SINCE THE CUSTOMER APPROVES THE STRUCTURAL DRAWINGS.
• HOUSE KIT MANUFACTURING WILL NOT BEGIN UNTIL THE FULL PAYMENT CONDITIONS ARE MET.
• PAYMENT:  BY PAYPAL UNLESS OTHER ARRANGEMENTS ARE MADE PRIOR TO PURCHASE.
• SHIPPING:  FREIGHT WILL BE PAID BY THE BUYER. CONTACT US TO GET A SHIPPING QUOTE TO YOUR LOCATION IN ADVANCE.
• YOU CAN ARRANGE YOUR OWN PICK UP FROM THE WAREHOUSE IN JERSEY CITY, NJ 07305

PRIOR TO PURCHASE:

• Construction experience is required to assemble this building package. It is recommended that a professional contractor be hired to install the kit if the purchaser is not qualified.
• Check with your local building official or Code Enforcement Office to obtain necessary permits and review possible site zoning, foundation and building requirements or restrictions (including, but not limited to: frost depth, soil-bearing pressure, drainage, etc.).
• Ensure that the building requirements meet the specifications of the building package kit (wind, seismic, snow load, exposure, etc.).
• In some cases, engineering criteria required for your build site may warrant a building plan different from the standard.
• ECOHOUSEMART will work with your licensed local architect to provide a suitable solution for your zoning requirements.

LOGISTICS AND PACKAGING:

• Our products are well shop-packed, which ensures the preservation of details during loading and unloading, transportation and storage.
• The transportation package is compiled of details of the same section area and length.
• Transportation packages are wrapped from 6 sides in waterproof polyethylene packing tape.

AT ECOHOUSEMART WE WILL CUSTOMIZE OUR KITS TO FIT YOUR INDIVIDUAL PLANS, WISHES, AND DREAMS.

WE ARE LOOKING FOR TALENTED DESIGNERS, BUILDERS AND NEW DEALERS THROUGHOUT THE US.

LOOKING FORWARD TO HEARING FROM YOU, AND HAVE A GREAT DAY!

ECOHOUSEMART
