Getting your tiny house dimensions right from the start saves you money, headaches, and regret later. The size you choose affects everything from where you can legally park to how much you can tow to whether your furniture will actually fit.
Tiny House Dimensions & Layouts (2026 Guide)
Learn the best tiny house dimensions and layouts for your lifestyle. This 2026 guide covers trailer widths, ceiling heights, loft placement, and popular floorplan ideas to help you design a functional small space.
TLDR: Tiny House Dimensions
Standard width is 8.5 feet to stay legal on highways without permits
Most popular length is 20 to 28 feet, providing 160 to 240 square feet
Maximum height is usually 13.5 feet to clear bridges and overpasses
Loft ceilings need at least 3 to 4 feet of clearance for sitting up
Single level designs work best for accessibility and aging in place
Your layout choice affects plumbing costs, natural light, and daily comfort
Most Popular Size
8.5 x 24 ft
About 200 square feet of floor space, fits standard trailer.
Dimensions vary by builder and local regulations. Always check zoning laws before building.
Why Dimensions Matter
Most first time tiny house owners make the mistake of thinking smaller is always better. But going too small creates daily frustrations that add up over time. Going too big means higher costs, harder transport, and fewer parking options. The sweet spot depends on how you plan to live.
This guide walks through every dimension that matters, from overall footprint to ceiling heights to loft clearances. We will cover the most popular sizes, explain the tradeoffs, and help you figure out what works for your situation.
Standard Tiny House Dimensions
Tiny houses on wheels have size limits set by road transport rules. These limits keep your home towable without special permits in most states.
Standard Width
8.5 ft
Highway legal
Common Length
20-28 ft
Most popular
Max Height
13.5 ft
Bridge clearance
Floor Space
160-240 sq ft
Typical range
Width Options
The 8.5 foot width is the standard because it matches highway lane limits. You can build wider, but anything over 8.5 feet requires wide load permits, escort vehicles, and restricted travel times. Most builders stick to 8.5 feet for this reason.
Some tiny houses go up to 10 feet wide for extra living space. This adds about 30 square feet to a 20 foot long house. The tradeoff is that you need permits for every state you travel through, which gets expensive and complicated if you move often.
Length Options
| Trailer Length | Floor Space | Best For |
|---|---|---|
| 16-18 feet | 130-150 sq ft | Solo living, minimal belongings |
| 20-24 feet | 170-200 sq ft | Most common, couples |
| 26-28 feet | 220-240 sq ft | Families, work from home |
| 30-32 feet | 255-270 sq ft | Maximum space, less mobility |

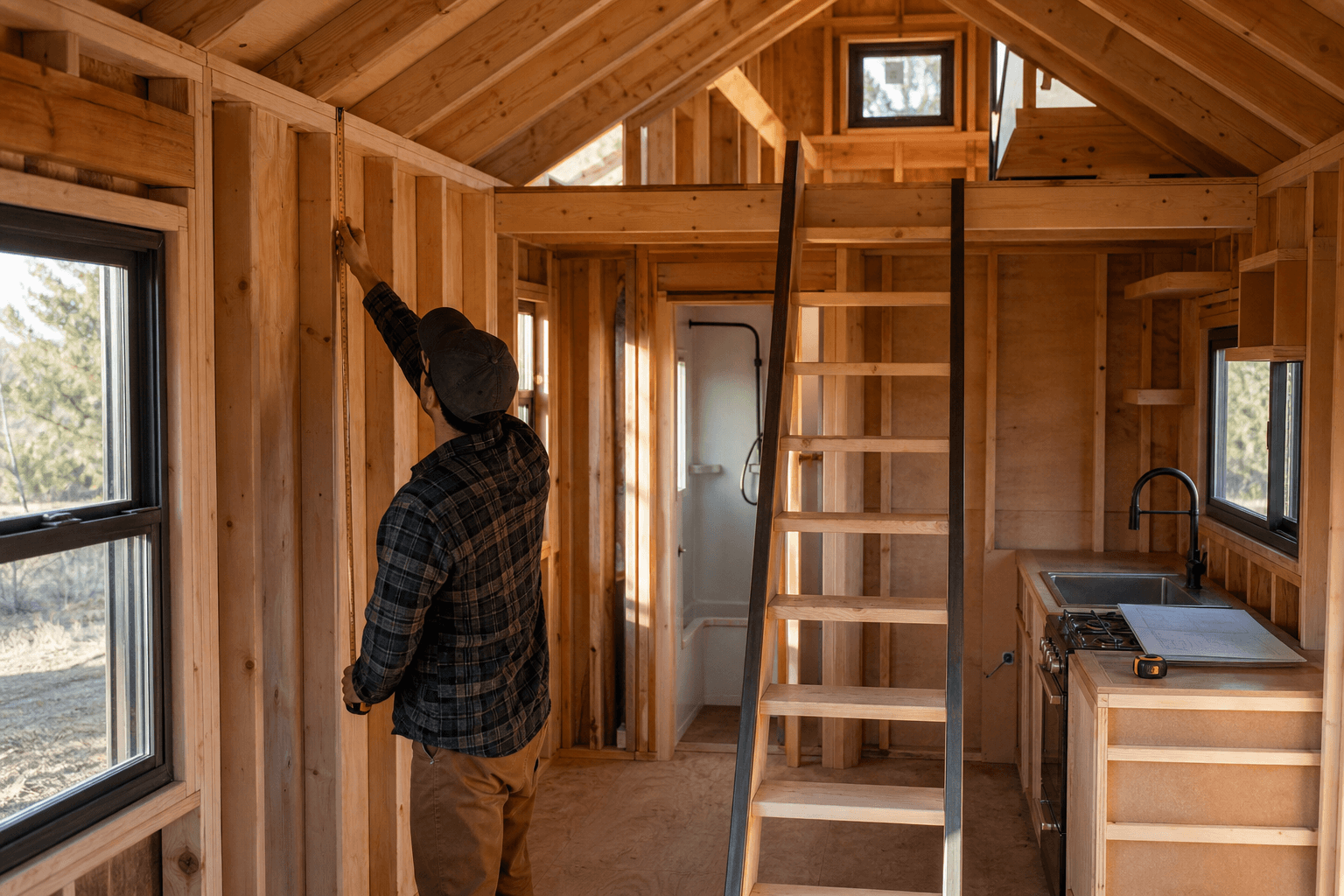

Ceiling Heights and Loft Clearance
Ceiling height affects how spacious your tiny house feels more than square footage does. A tiny house with 9 foot ceilings feels much bigger than one with 7 foot ceilings, even if they have the same floor space.
Main Floor Heights
- Minimum 7 feet for building code
- 8 to 9 feet feels comfortable
- Higher ceilings = less loft space
- Cathedral ceilings add visual space
Loft Clearances
- 3 feet minimum for sleeping only
- 4 feet allows sitting up in bed
- 5 feet needed for comfortable use
- Full height lofts rare due to transport limits
Loft Safety Tip
If your loft has less than 4 feet of clearance, consider a pitched roof design over the loft area. This gives you more headroom in the center while keeping the overall height under 13.5 feet. Many builders use this trick to create more livable sleeping spaces.

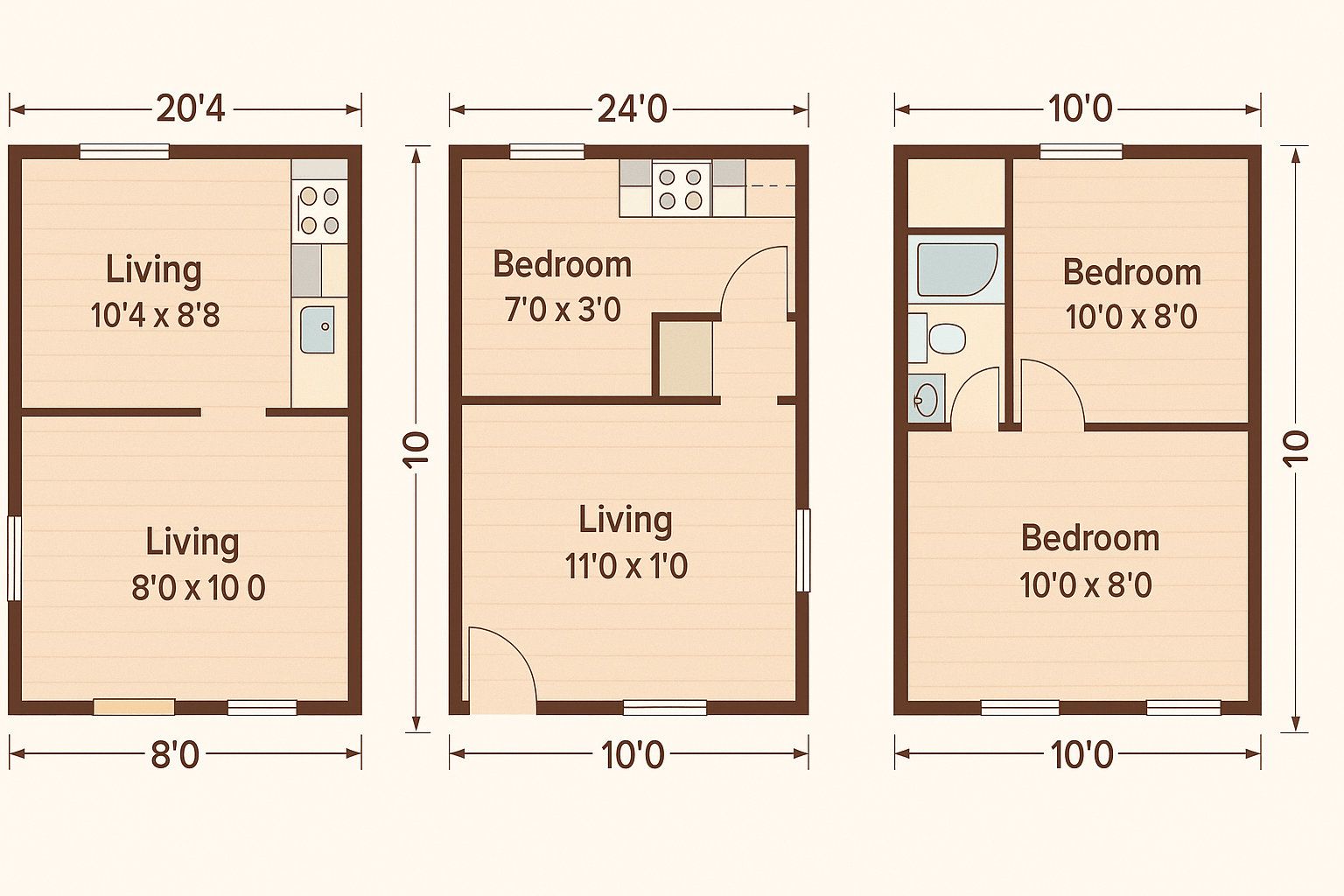

Popular Tiny House Layouts
Your layout determines how your tiny house flows on a daily basis. The wrong layout creates bottlenecks, wasted space, and frustration. The right layout makes your home feel twice as big as it really is.
- 1.Bedroom Loft Layout: Sleeping loft over bathroom or living area, main floor for kitchen and living. Most common design, works for 20 to 24 foot builds.
- 2.Main Floor Bedroom: Bedroom on one end at floor level, no ladder needed. Best for accessibility or if you dislike climbing. Requires longer trailer (28+ feet).
- 3.Dual Loft Design: Sleeping loft on one end, storage or office loft on other. Great for remote workers or families with kids.
- 4.Open Plan Layout: No loft, murphy bed on wall, maximizes ceiling height. Works well in shorter builds (16 to 20 feet).
Kitchen and Bathroom Placement
Layout Best Practices
- •Put the bathroom at the trailer hitch end for easier plumbing connections
- •Keep kitchen and bathroom near each other to reduce pipe runs
- •Place living area at the opposite end from bathroom for privacy
- •Position loft access away from entry door to avoid traffic jams
Weight and Dimension Tradeoffs
Every dimension decision affects weight. Longer trailers weigh more. Taller builds with lofts add structural weight. Wider designs need heavier framing. Your tow vehicle sets hard limits on what you can build.
Weight Limits to Know
Most tiny houses weigh 8,000 to 12,000 pounds when finished. A typical half ton truck can safely tow 10,000 pounds. If your design exceeds this, you need a heavy duty truck or professional moving service. Use our weight calculator to estimate your build.
Compact Build
Under 20 feet, lighter weight
Easier to tow with standard truck
More parking options
Lower material costs
Less living space
May feel cramped for two people
Best For: Solo dwellers, frequent movers
Full Size Build
24 to 28 feet, more space
Comfortable for couples or small families
Room for home office
Full size appliances fit
Needs heavier tow vehicle
Fewer legal parking spots
Best For: Long-term living, families
Design Tips for Your Layout
Good tiny house design makes every inch count. Here are proven strategies from experienced builders and long-term tiny house owners.
- •Use windows strategically to make rooms feel larger and bring in natural light
- •Build storage into stairs, under seating, and above doorways
- •Choose a galley kitchen layout to maximize counter space in narrow homes
- •Install sliding or pocket doors instead of swing doors to save floor space
- •Keep traffic paths clear by placing furniture against walls
- •Use light colors on walls and ceilings to create an open feeling
Planning Your Build
Before finalizing dimensions, think about your furniture, appliances, and daily routines. Measure your current bed, couch, and table to make sure they fit your planned layout.
How Dimensions Affect Zoning
Some cities have minimum square footage requirements that tiny houses struggle to meet. Others have maximum sizes for accessory dwelling units. Knowing local rules helps you choose dimensions that keep your build legal.
For example, many cities require ADUs to be at least 150 or 200 square feet. If you build a 16 foot tiny house at 130 square feet, it might not qualify. On the flip side, some places cap ADUs at 400 or 500 square feet, which most tiny houses easily fit under.
Check Before You Build
Research zoning rules in your target location before choosing dimensions. Building codes, fire setbacks, and parking requirements all vary by city and county. Our buyer's guide has state by state information to help you navigate local rules.
